For manufacturers and powder coating professionals, the electrostatic powder coating gun is the heart of any powder coating process—this precision tool transforms loose powder into a durable, uniform coating on metal workpieces, from 3–12m architectural aluminum profiles to automotive components and small hardware. While powder coating guns are ubiquitous in industrial surface treatment, understanding what an electrostatic powder coating gun is, how it works, and why it’s superior to traditional coating tools is critical for optimizing finish quality, reducing waste, and boosting production efficiency. As a 15-year national high-tech enterprise, China’s pioneer of explosion-proof powder room systems, and a trusted powder coating equipment manufacturer exporting to 100+ countries, Guangdong Guanghe Coating Equipment Co., Ltd. breaks down everything you need to know about electrostatic powder coating guns—from core functionality and key components to types, benefits, and how to integrate them with your powder coating line.
1、What Exactly Is an Electrostatic Powder Coating Gun?
An electrostatic powder coating gun is a specialized handheld or automated tool that applies dry powder coating to metal surfaces using electrostatic charge technology. Unlike liquid paint spray guns that rely on pressure to atomize and apply coating, electrostatic powder guns charge powder particles with a high-voltage electrostatic charge (typically 60–100kV) as they pass through the gun’s nozzle. This charge causes the powder particles to be attracted to grounded metal workpieces, creating a tight, uniform bond that adheres to all surfaces—even complex, irregular shapes—with minimal overspray.
As a core component of every professional powder coating setup, electrostatic powder coating guns are compatible with all powder coating booths, powder coating reciprocators, and vertical powder coating lines—and are the gold standard for industries like architectural aluminum, automotive, home appliances, and metal fabrication (trusted by Guanghe’s partners including BYD, GREE, 广亚铝材，and Honda). At Guanghe, our electrostatic powder coating guns are engineered with ISO9001/CE certification, 40+ patented technologies, and customization for all workpiece types, making them a staple in turnkey powder coating solutions for small workshops and large-scale factories alike.
2、How Does an Electrostatic Powder Coating Gun Work?
The magic of an electrostatic powder coating gun lies in electrostatic attraction—a simple but highly effective physical principle that ensures precise, efficient powder application. The process is broken down into 5 seamless steps, all optimized in Guanghe’s gun designs for maximum transfer efficiency and finish quality:
- Powder Feeding: Dry powder coating (polyester, epoxy, hybrid, or textured) is fed into the gun from a powder hopper or feeder system—Guanghe’s guns support both manual hopper feeding (for small-batch work) and automated central feeding (for mass production).
- Electrostatic Charging: As powder particles move through the gun’s nozzle, they pass a high-voltage electrode (60–100kV, adjustable in Guanghe’s models) that imparts a negative electrostatic charge to each particle. Our guns feature precision charge control to avoid overcharging (which causes powder clumping) or undercharging (which leads to poor adhesion).
- Spray Application: Compressed air propels the charged powder particles out of the gun’s nozzle toward the workpiece. The adjustable spray pattern (fan, round, narrow) in Guanghe’s guns lets operators tailor application to workpiece size—critical for 3–12m aluminum profiles or small intricate hardware.
- Electrostatic Attraction: The metal workpiece is grounded (connected to an electrical ground), creating a positive charge that attracts the negatively charged powder particles. This attraction pulls powder to all surfaces of the workpiece—including edges, corners, and recesses—eliminating bare spots and ensuring uniform coverage.
- Curing Preparation: The charged powder particles cling tightly to the grounded workpiece during transport to the powder coating oven, where heat cures the powder into a hard, durable finish. Guanghe’s guns are designed to minimize powder fallout during curing, reducing waste and rework.
3、Key Components of an Electrostatic Powder Coating Gun
Every step of this process is refined in Guanghe’s electrostatic powder coating guns—from anti-clog nozzles to adjustable voltage and air pressure—ensuring consistent performance for 24/7 production lines and manual small-batch work alike.
- Gun Body: Ergonomic, lightweight design for manual guns (reducing operator fatigue) and rugged, compact construction for automated guns (compatible with reciprocators and robots). Guanghe’s manual guns feature non-slip grips and balanced weight for extended use.
- High-Voltage Electrode: The heart of the electrostatic system—Guanghe uses corrosion-resistant titanium electrodes for consistent charging, with easy replacement for maintenance.
- Nozzle Assembly: Interchangeable nozzles for adjustable spray patterns (fan, round) and flow rates—our nozzles are anti-clog and wear-resistant, ideal for all powder types (including fine metallic and coarse textured powder).
- Powder Feed Tube: Smooth, anti-static tubing that prevents powder clumping and ensures consistent powder flow from hopper to nozzle.
- Control Unit: For automated guns, a digital control unit that adjusts voltage, air pressure, and powder flow—integrated with Mitsubishi PLC systems for sync with powder coating robots and reciprocators. Guanghe’s control units store up to 50+ spray recipes for quick switching between workpiece types.
- Grounding Cable: Critical for creating the electrostatic attraction—Guanghe includes heavy-duty grounding cables with all gun systems to ensure a reliable ground connection for all metal workpieces.
4、The Main Types of Electrostatic Powder Coating Guns
Electrostatic powder coating guns are categorized by their operation type (manual/automated) and design, each tailored to different production volumes, workshop setups, and workpiece types. Guanghe offers a full range of guns, all compatible with our powder coating booths and lines, to match every business need:

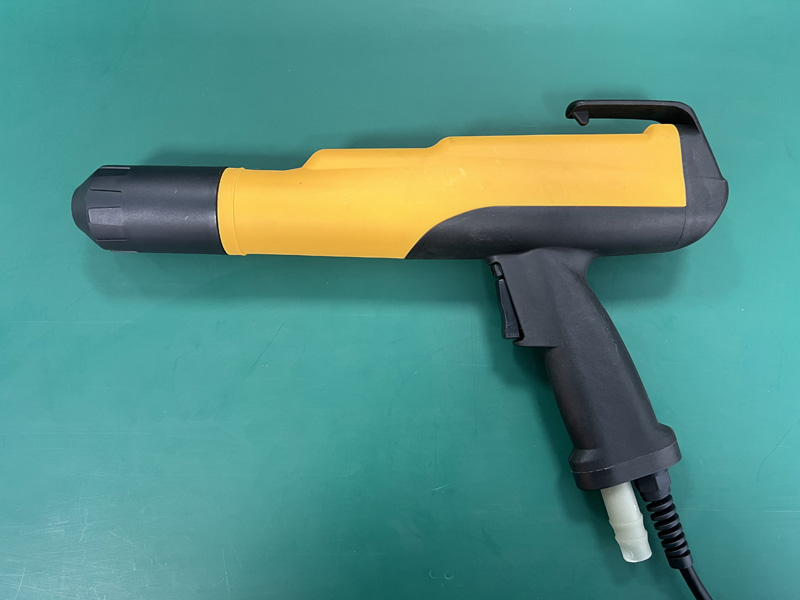

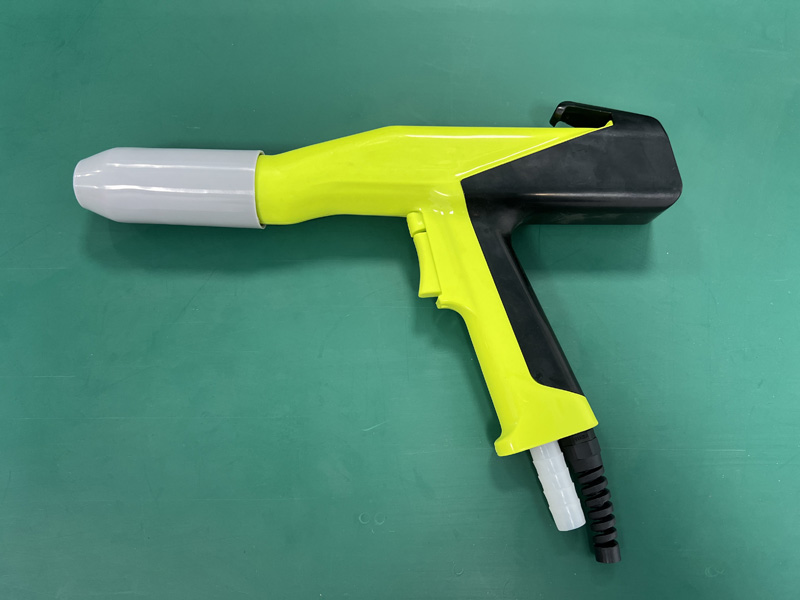

a. Manual Electrostatic Powder Coating Guns
Ideal for small-batch production, custom work, and large/irregular workpieces (e.g., custom metal fabrication, large architectural aluminum components). These handheld guns offer maximum flexibility, with adjustable voltage and spray patterns for precise application. Guanghe’s manual guns are lightweight, easy to operate (no specialized training required), and compatible with small crossdraft powder coating booths—perfect for startups and small workshops.
b. Automatic Electrostatic Powder Coating Guns
Designed for high-volume, continuous production (e.g., 3–12m aluminum profile lines, automotive part manufacturing, home appliance production). These guns are mounted on powder coating reciprocators or robots, with automated powder feeding and spray control. Guanghe’s automatic guns sync seamlessly with vertical powder coating lines and high-recovery booths, delivering 92%+ powder transfer efficiency and consistent finishes for 10k+ parts/day.
c. High-Voltage Electrostatic Powder Coating Guns
A premium option for thick-coat and high-adhesion requirements (e.g., outdoor architectural aluminum, marine components, industrial machinery). These guns feature adjustable high voltage (80–120kV) for superior powder charging, ensuring thick, uniform coatings (50–150μm) that resist weathering, corrosion, and impact. Guanghe’s high-voltage guns are the top choice for export-oriented manufacturers meeting AAMA 2604/2605 and ISO 12944 standards.
5、Why Choose an Electrostatic Powder Coating Gun Over Traditional Coating Tools?
Electrostatic powder coating guns have replaced traditional liquid paint guns and non-electrostatic powder guns in nearly all industrial applications—and for good reason. The benefits of electrostatic technology are transformative for finish quality, cost efficiency, and environmental sustainability, and Guanghe’s guns amplify these benefits with patented design features:
a. Superior Finish Quality & Uniformity
Electrostatic attraction ensures powder adheres to all workpiece surfaces, eliminating bare spots, drips, and uneven coating common with liquid paint. Guanghe’s guns deliver consistent film thickness (±2μm) for a flawless finish—critical for high-visibility applications like architectural aluminum facades and automotive parts, reducing rework rates to <3% (vs. industry average 8%).
b. High Powder Transfer Efficiency (Minimal Waste)
Non-electrostatic powder guns waste up to 50% of powder via overspray, but electrostatic guns (like Guanghe’s) achieve 90–98% transfer efficiency. This slashes powder material costs by 30–50% for most businesses, with even greater savings for high-volume production. When paired with a powder coating booth recovery system, unused powder is recycled, further reducing waste.
c. Eco-Friendly (Zero VOCs)
Unlike liquid paint, powder coating contains no volatile organic compounds (VOCs), and electrostatic guns eliminate paint runoff and solvent waste. This makes electrostatic powder coating a sustainable choice—compliant with EU REACH, US EPA, and Chinese GB environmental standards—and a key selling point for eco-conscious clients.
d. Durable, Long-Lasting Coatings
The electrostatic bond creates a tight adhesion between powder and metal, and cured powder coatings are more resistant to chipping, scratching, and corrosion than liquid paint. Guanghe’s guns are optimized for powder types that deliver 10+ years of outdoor service for architectural aluminum—meeting the strict durability requirements of global construction projects.
e. Versatility for All Metal Workpieces
Electrostatic powder coating guns work with all metal substrates (aluminum, steel, iron, brass) and all powder types (polyester, epoxy, hybrid, textured, metallic). Guanghe’s interchangeable nozzles and adjustable spray settings make our guns suitable for everything from 3–12m aluminum profiles to small hardware and intricate automotive parts.
6、How Guanghe’s Electrostatic Powder Coating Guns Stand Out for Your Business
As a leading powder coating equipment manufacturer with 15+ years of expertise and 40+ patents, Guanghe’s electrostatic powder coating guns are engineered for the unique needs of industrial manufacturers—especially those producing architectural aluminum profiles and export-grade parts. What sets our guns apart:
- Aluminum Profile Specialization: Optimized for 3–12m architectural aluminum extrusions, with adjustable spray patterns and voltage to ensure uniform coating along the entire length of vertical profiles—compatible with our vertical powder coating lines.
- Explosion-Proof Design: A Guanghe specialty—our electrostatic guns feature spark-free components and anti-static design, compatible with our explosion-proof powder coating booths for safe operation in high-powder environments (compliant with ATEX and CE safety standards).
- Seamless Integration: All our guns are pre-tested to work with Guanghe’s powder coating booths, reciprocators, robots, and curing ovens—eliminating integration issues and ensuring end-to-end production efficiency.
- Customization: We tailor gun specifications (voltage range, spray pattern, powder feed type) to your production volume, workpiece type, and finish requirements—no “off-the-shelf” compromises.
- Global Compliance: ISO9001/CE/SGS certified, our guns meet global quality and safety standards—critical for export-oriented manufacturers shipping to 100+ countries (like Guanghe’s own clients).
- Global After-Sales Support: ≤4-hour response time, 12-month warranty, on-site installation and training, and replacement parts shipped worldwide—ensuring your guns operate at peak performance, no matter where your factory is located.
