High-recovery powder coating booths are the cornerstone of efficient, cost-effective industrial powder coating—especially for high-volume production like architectural aluminum extrusions, automotive parts, and metal furniture. These booths boast powder recovery rates of up to 98% or more, slashing material waste and operational costs while boosting sustainability. But their full potential is only unlocked when paired with the right powder coating gun: a mismatched gun can undermine recovery efficiency, create uneven coating, and negate the booth’s core benefits.
At Guanghe Coating (www.powdercoatequipment.com), a 15-year veteran manufacturer of powder coating equipment with ISO9001 certification and 40+ patents, we specialize in one-stop surface treatment solutions—matching high-recovery booths with electrostatic powder coating guns that optimize performance, coating quality, and material savings. As the pioneer of China’s explosion-proof powder room system, we’ve engineered gun-booth pairings for 100+ countries and leading brands like GREE, BYD, and Guangya Aluminum. Below, we break down the critical factors for choosing a powder coating gun for high-recovery booths, the best gun types for different high-recovery booth designs, and key considerations to ensure a seamless, efficient setup.
1、Key Qualities of a Powder Coating Gun for High-Recovery Booths
High-recovery booths (including cyclone recovery, cartridge filter, and baghouse powder coating booths) rely on controlled airflow and precise powder capture to minimize overspray waste. For a gun to complement this design, it must have four non-negotiable qualities—all of which define Guanghe’s electrostatic powder coating gun line:
- Precise Electrostatic Charge Control: A consistent, adjustable electrostatic charge ensures powder particles adhere tightly to the workpiece (metal profiles, automotive components, etc.) rather than drifting into the booth’s airflow as overspray. Guanghe’s guns feature variable voltage control (0-100kV) to match different powder types (polyester, epoxy, hybrid) and workpiece geometries, reducing overspray by up to 30% alone.
- Uniform Powder Output & Pattern Control: Uneven powder flow or a poorly shaped spray pattern leads to excess overspray—even in the most advanced high-recovery booth. Our guns offer adjustable spray patterns (round, flat, fan) and micro-meter powder flow control, delivering a consistent coating layer for complex workpieces like architectural aluminum extrusions and curved automotive parts.
- Compatibility with Booth Recovery Airflow: High-recovery booths operate on negative pressure airflow to capture overspray. The ideal gun has a low air consumption rate and spray velocity that aligns with the booth’s airflow speed—avoiding powder particle turbulence that bypasses the recovery system. Guanghe’s low-pressure powder coating guns are calibrated for the airflow dynamics of our industrial spraying equipment powder coating spray booths, ensuring maximum capture.
- Durability in High-Volume Environments: High-recovery booths are used for continuous production, so the gun must withstand 24/7 operation without clogs, charge dropouts, or mechanical failure. Our guns feature anti-clog nozzles, corrosion-resistant components, and explosion-proof design—critical for compliance with industrial safety standards and seamless integration with our explosion-proof powder coating booths.

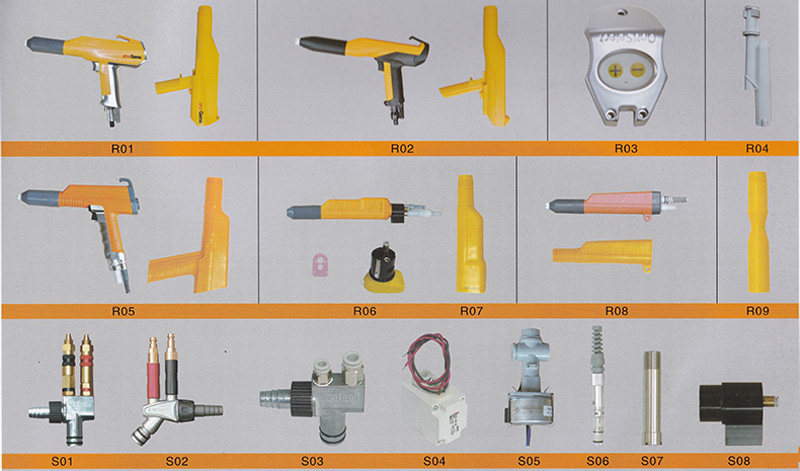

2、The Best Powder Coating Gun Types for Different High-Recovery Booths
Not all high-recovery booths are the same, and the optimal gun pairing depends on the booth’s recovery technology, production volume, and workpiece type. At Guanghe, we design our powder coating equipment to be fully compatible—matching our cyclone, cartridge, and baghouse high-recovery booths with gun types that maximize efficiency for every application:

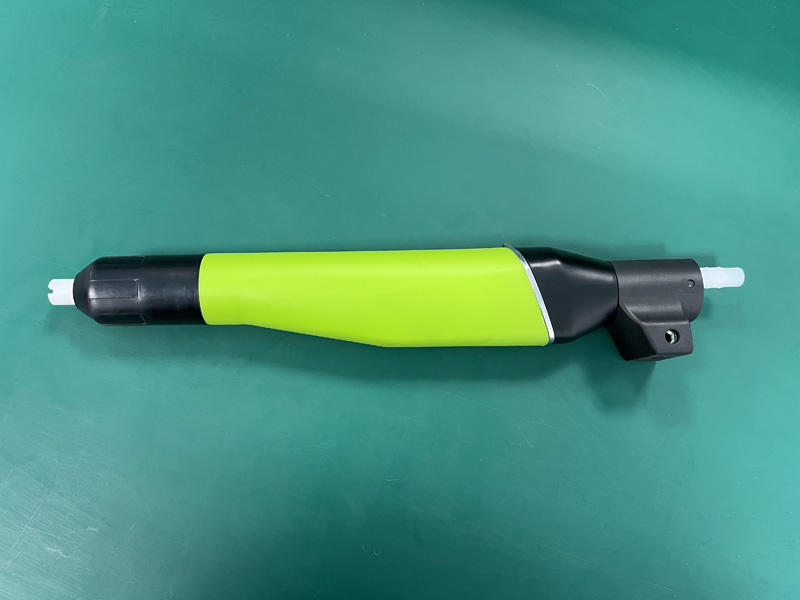

a. Electrostatic Automatic Powder Coating Guns for Cartridge Filter High-Recovery Booths
Cartridge filter high-recovery booths are the most popular choice for medium-to-high volume production (e.g., architectural aluminum extrusion lines) due to their compact design and 95-98% recovery rate. These booths use high-efficiency cartridge filters to capture fine powder particles, making them ideal for small to medium workpiece sizes.
Best gun match: Automatic electrostatic powder coating guns (paired with a powder coating reciprocator)—the gold standard for consistent, high-volume coating. Guanghe’s automatic guns integrate seamlessly with our vertical powder coating lines and cartridge filter booths, with programmable spray parameters (speed, pattern, powder flow) that sync with the booth’s recovery system. This pairing is perfect for aluminum profile automatic powder coating spraying, delivering uniform coating on long extrusions while the booth captures nearly all overspray.
Ideal applications: Architectural aluminum extrusions, metal furniture, HVAC components, and small automotive parts.
b. High-Voltage Manual Electrostatic Guns for Cyclone High-Recovery Booths
Cyclone high-recovery booths use centrifugal force to separate and recover large powder particles (recovery rate 90-95%), making them a cost-effective choice for small-batch, custom production or large workpieces (e.g., agricultural machinery, large metal frames) where manual spraying is necessary.
Best gun match: High-voltage manual electrostatic powder coating guns with ergonomic design and adjustable charge/pattern. Guanghe’s manual guns offer the precision needed for custom work, with a lightweight build that reduces operator fatigue, and a high-voltage charge that ensures strong powder adhesion—minimizing overspray even for irregularly shaped workpieces. The cyclone booth’s focus on large particle recovery pairs perfectly with the manual gun’s targeted spray, as most fine overspray is captured by secondary filtration in the booth.
Ideal applications: Custom metal fabrication, large industrial parts, small-batch aluminum profile production, and agricultural equipment.
c. Robotic Electrostatic Powder Coating Guns for Baghouse High-Recovery Booths
Baghouse high-recovery booths deliver the highest recovery rates (98%+) and are designed for ultra-high-volume, continuous production (e.g., automotive manufacturing, mass-produced aluminum profiles). These booths use large bag filters to capture all powder particle sizes, making them the most efficient option for large-scale operations.
Best gun match: Robotic electrostatic powder coating guns (part of Guanghe’s powder coating robot systems). Robotic guns offer unmatched precision, repeatability, and speed—eliminating human error and reducing overspray to a minimum. Our robotic guns are fully integrated with baghouse high-recovery booths, with synchronized movement and spray parameters that align with the booth’s airflow and recovery cycle. This pairing is the ultimate solution for turnkey powder coating lines, delivering consistent coating quality at scale while maximizing material savings.
Ideal applications: Automotive body parts, mass-produced architectural aluminum extrusions, home appliance casings (Midea, Hisense), and high-volume metal component production.
3、Critical Pairing Considerations for High-Recovery Booths & Powder Coating Guns
Even the best gun and booth will underperform if they’re not paired with system-level considerations. At Guanghe, we design our complete powder coating lines to address these factors, ensuring a cohesive setup that delivers maximum efficiency:
a. Match Powder Type to Gun & Booth
Different powder types (polyester, epoxy, hybrid, metallic) have unique particle sizes and electrostatic properties. For example, metallic powders require a lower electrostatic charge to avoid particle clumping—so we pair our metallic powder-calibrated guns with cartridge filter high-recovery booths, which excel at capturing fine metallic particles. Our team provides personalized powder-gun-booth matching for every customer, based on their production needs.
b. Integrate with Booth Recovery & Pretreatment Systems
A high-recovery booth is only one part of a complete powder coating line. The gun must work in tandem with the booth’s recovery system (to recirculate unused powder) and the pretreatment system (to ensure clean workpiece surfaces for strong powder adhesion). Guanghe’s one-stop solutions include fully integrated pretreatment, gun, booth, and curing powder coating oven systems—eliminating compatibility issues and streamlining production.
c. Prioritize Explosion-Proof Design for Industrial Safety
As the pioneer of China’s explosion-proof powder room system, we know that powder coating operations carry dust explosion risks—especially in high-recovery booths where powder is concentrated. All Guanghe powder coating guns and high-recovery booths feature explosion-proof design, complying with international safety standards and protecting your workforce and production facility.
d. Opt for Easy Maintenance & Color Change
High-volume production requires fast color changes and minimal downtime. Our powder coating guns feature quick-release nozzles and detachable powder hoppers, while our high-recovery booths have fast-color-change systems—reducing color change time by up to 50% and ensuring the gun and booth are easy to clean and maintain.
4、Why Guanghe Coating Is Your Go-To for Gun-Booth Pairings
At Guanghe Coating, we don’t just sell powder coating guns and high-recovery booths—we engineer custom, one-stop surface treatment solutions that match your production volume, workpiece type, and budget. With 15+ years of experience, ISO9001 certification, 40+ patents, and partnerships with global brands, we offer:
- Fully compatible powder coating equipment: Every gun, booth, reciprocator, and oven is designed to work together, maximizing efficiency and coating quality.
- Explosion-proof technology: As China’s pioneer of explosion-proof powder room systems, our equipment meets the strictest industrial safety standards.
- Global support: We export to 100+ countries, with on-site installation, training, and after-sales service for all our powder coating lines.
- Customization: We design bespoke gun-booth pairings for unique applications, from architectural aluminum extrusions to automotive production.
Final Thoughts
A high-recovery powder coating booth is a game-changer for reducing waste and boosting profitability—but it’s only as good as the powder coating gun it’s paired with. The key is to choose a gun with precise electrostatic control, uniform powder output, and compatibility with your booth’s recovery technology—all qualities that define Guanghe’s electrostatic powder coating gun line.
Whether you’re operating a cartridge filter booth for aluminum profile production, a cyclone booth for small-batch custom work, or a baghouse booth for ultra-high-volume automotive manufacturing, Guanghe Coating has the perfect gun-booth pairing for your needs. As a national high-tech enterprise with a focus on turnkey powder coating solutions, we’re here to help you unlock the full potential of your high-recovery booth—minimizing waste, maximizing coating quality, and scaling your production efficiently.
