If you operate a powder coating business, maximizing material efficiency, cutting operational costs, and maintaining a clean work environment are non-negotiable—and a powder coating booth recovery system is the unsung hero that makes all of this possible. For many new and even experienced powder coaters, understanding what a recovery system is, how it works, and why it’s essential for both manual powder coating booth and automatic powder coating booth setups is critical to optimizing your process. As a leading powder coating equipment manufacturer with 15+ years of expertise, ISO9001/CE certification, and status as China’s pioneer of explosion-proof powder room systems, Guanghe Coating Equipment breaks down everything you need to know about powder coating booth recovery systems—from core functionality and types to benefits, installation, and how to choose the right system for your powder coating booth.
1、What Exactly Is a Recovery System in a Powder Coating Booth?
A powder coating booth recovery system is a specialized filtration and collection component integrated into powder coating booths that captures excess powder overspray during the coating process, separates it from air and contaminants, and recycles or disposes of the powder safely. Unlike basic booth filtration that only cleans air for ventilation, a recovery system is designed to retain usable powder particles, preventing waste and reducing the need for frequent powder replenishment.
This system is a staple in all professional industrial powder coating booth setups, whether you’re using a crossdraft powder coating booth for small-batch production or a high-volume downdraft booth for architectural aluminum or automotive parts. At Guanghe, every powder coating booth we manufacture is engineered with a customizable recovery system, tailored to match the booth’s design, production volume, and the type of powder coatings (e.g., polyester, epoxy, hybrid) our clients use.
2、How Does a Powder Coating Booth Recovery System Work?
The core goal of a recovery system is simple: capture overspray powder, filter out dust/debris, and return clean powder to your coating process—all while maintaining proper booth airflow (a critical factor for finish quality). The process follows four key steps, and Guanghe’s systems optimize each stage for maximum efficiency:
- Capture: As you spray powder onto a workpiece, excess overspray is pulled into the recovery system by the booth’s airflow (horizontal for crossdraft booths, vertical for downdraft booths). Guanghe’s booths feature precision airflow control to ensure 90%+ of overspray is directed to the recovery system, not lost to the workshop environment.
- Separation: The captured overspray (powder + air + minor contaminants) enters a separation chamber (e.g., cyclone, cartridge filter). Our systems use high-efficiency cartridge filters with micron-level precision to separate usable powder particles (typically 20–100 microns) from fine dust and air—ensuring only clean, re-usable powder is retained.
- Collection: Usable powder particles fall into a collection hopper or bin, where they’re stored for re-use. Guanghe’s recovery systems include sealed collection components to prevent powder contamination and moisture buildup (a common issue that ruins powder quality).
- Ventilation: Filtered, clean air is either recirculated back into the booth (for energy efficiency) or exhausted outside the workshop, complying with global air quality and safety standards (ISO, CE, OSHA). Our explosion-proof recovery system models are designed for hazardous environments, with spark-free components to eliminate fire risks.
3、The Main Types of Powder Coating Booth Recovery Systems
Not all recovery systems are the same—they’re categorized by their separation technology, and the right type for your business depends on your powder coating booth design, production volume, and powder type. Guanghe offers three primary recovery system types, all compatible with our manual, automatic, crossdraft, and downdraft booths:
- Cartridge Filter Recovery Systems:The most common and versatile type, ideal for small to medium-volume production (e.g., small businesses, custom metal fabrication) and all powder types. Cartridge filters use pleated, high-efficiency media to capture overspray, and they’re easy to clean and maintain (via pulse-jet cleaning). Guanghe’s cartridge filter systems are standard in our manual powder coating booth models, offering up to 90% powder recovery efficiency and a compact design that fits tight workshop spaces.

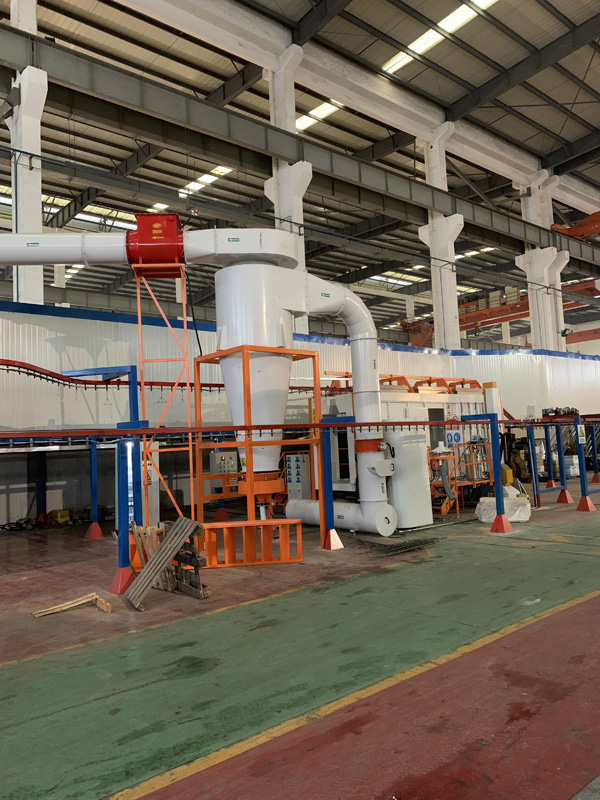

- Cyclone Recovery Systems:Designed for high-volume production (e.g., architectural aluminum profiles, automotive parts) and large automatic powder coating booth setups. Cyclone systems use centrifugal force to separate large, usable powder particles from air and dust, with recovery efficiency up to 95%. They’re perfect for businesses that use large quantities of powder daily, as they minimize waste and reduce material costs significantly. Guanghe integrates cyclone recovery systems into our vertical powder coating line-compatible booths, a top choice for our clients in the architectural aluminum industry (3–12m profile production).
- Combination (Cartridge + Cyclone) Recovery Systems:The premium solution for businesses that demand maximum efficiency and versatility (e.g., large-scale manufacturers that coat a mix of part sizes and use multiple powder types). This system combines the precision of cartridge filters with the high-volume capture of cyclones, delivering up to 98% powder recovery efficiency. Guanghe’s combination recovery systems are custom-built for our largest clients (e.g., BYD, Gree, Hikvision) and are a staple in our explosion-proof powder coating booths, where both efficiency and safety are paramount.
4、Why a Recovery System Is Non-Negotiable for Your Powder Coating Booth
A powder coating booth without a quality recovery system is a missed opportunity to save money, improve process efficiency, and create a safer work environment. The benefits extend far beyond just powder recycling—here’s why every professional powder coating booth needs one, straight from Guanghe’s 15+ years of serving 100+ countries:
- Drastically Reduces Powder Waste (and Material Costs):Powder coating powder is a significant operational expense, and without a recovery system, up to 50% of your powder can be lost to overspray. Guanghe’s recovery systems retain 90–98% of usable overspray, slashing powder costs by 30–50% for most businesses. For high-volume manufacturers, this translates to tens of thousands of dollars in annual savings—an ROI that pays for the system in months.
- Improves Finish Quality and Consistency:A recovery system maintains clean booth airflow by removing excess powder and contaminants from the air. This eliminates the risk of overspray powder settling back onto freshly coated workpieces (a common cause of dust specks, orange peel, and uneven finishes). With a Guanghe recovery system, even less experienced operators can achieve consistent, high-quality finishes—reducing rework and increasing customer satisfaction.
- Creates a Safer, Healthier Work Environment:Powder coating powder particles are fine and can be harmful if inhaled in large quantities. A recovery system captures these particles before they escape the booth, improving air quality in your workshop and reducing the risk of respiratory issues for your team. Additionally, Guanghe’s explosion-proof recovery systems eliminate fire and explosion risks in hazardous environments—our designs are the gold standard in China for explosion-proof powder room systems, complying with strict CE and ISO safety standards.
- Lowers Maintenance and Cleaning Costs:Excess powder overspray can build up on booth walls, floors, and equipment, leading to frequent, time-consuming cleaning. A recovery system captures most overspray before it can settle, reducing cleaning frequency by 70% or more. Guanghe’s recovery systems also feature easy-to-clean components (removable hoppers, washable filters) that minimize maintenance time and labor costs.
- Boosts Environmental Sustainability:Powder coating is already a more eco-friendly alternative to liquid painting (no VOCs), and a recovery system makes it even greener. By recycling powder, you reduce landfill waste from unused powder and lower your carbon footprint (fewer powder shipments mean less transportation emissions). Many of Guanghe’s clients use our recovery systems to meet their corporate sustainability goals—an added bonus for businesses targeting eco-conscious customers.
5、How to Choose the Right Recovery System for Your Powder Coating Booth
Not all recovery systems are compatible with every powder coating booth—choosing the right one depends on three key factors, and Guanghe’s team of experts is here to help you make the perfect match for your business:
a. Match the System to Your Booth Type and Production Volume
- Manual powder coating booth / Low Volume: Cartridge filter recovery system (compact, affordable, easy to maintain).
- Crossdraft powder coating booth / Medium Volume: Cartridge filter or small cyclone system (balances efficiency and space).
- Automatic powder coating booth / High Volume: Cyclone or combination system (maximizes powder recovery for large-scale production).
b. Consider the Powder Type You Use
- Different powder coatings (e.g., fine metallic powder, coarse textured powder) require different filter precision. Guanghe’s recovery systems are customizable—we offer filter media tailored to fine, medium, and coarse powder particles, ensuring optimal capture and recycling for your specific coating type.
c. Prioritize Compatibility and Customization
Your recovery system must integrate seamlessly with your existing powder coating booth, electrostatic powder coating machine, and curing oven. At Guanghe, we design all our recovery systems to work with our full range of powder coating equipment, and we also offer custom retrofits for existing booths—so you don’t have to replace your entire setup to add a high-efficiency recovery system.
Guanghe’s Custom Powder Coating Booth Recovery Systems: Built for Your Business
At Guanghe Coating Equipment, we don’t offer one-size-fits-all recovery systems—we engineer custom solutions tailored to your powder coating booth design, production volume, powder type, and safety requirements. As a national high-tech enterprise with 40+ patents, our recovery systems feature industry-leading innovations:
- Explosion-proof design: A Guanghe specialty, ideal for hazardous manufacturing environments (complies with CE/ISO safety standards).
- High-efficiency filtration: Micron-level cartridge filters and cyclone separation for 90–98% powder recovery efficiency.
- Energy-saving airflow control: Recirculate up to 90% of filtered air back into the booth, cutting heating/cooling costs.
- Easy maintenance: Removable collection hoppers, pulse-jet filter cleaning, and sealed components to prevent contamination.
- Seamless integration: Compatible with all Guanghe powder coating booths (manual, automatic, crossdraft, downdraft) and vertical powder coating lines—the top choice for architectural aluminum manufacturers.
Our recovery systems are trusted by industry leaders like BYD, Gree, Hikvision, and Midea, and we ship them to 100+ countries as part of our one-stop powder coating solutions. Whether you need a basic cartridge filter system for your small manual powder coating booth or a custom combination system for your high-volume automatic booth, we have the expertise and products to optimize your process.
Final Thoughts: Invest in a Recovery System, Invest in Your Business
A powder coating booth recovery system is not an optional add-on—it’s a core investment that drives cost savings, efficiency, and quality for your powder coating business. From small startups using a crossdraft powder coating booth to large manufacturers with automated downdraft setups, every business benefits from reducing powder waste, improving finish quality, and creating a safer work environment.
At Guanghe Coating Equipment, we’ve spent 15+ years perfecting our powder coating booths and recovery systems, and we’re committed to helping our clients get the most out of their powder coating process. Whether you’re building a new powder coating setup from scratch or upgrading your existing booth with a recovery system, our team will assess your needs, design a custom solution, and provide turnkey installation and after-sales support—globally.
