The control system is the brain of an automatic spray painting line—its reliability directly dictates the line’s operational stability, coating consistency, production efficiency, and even long-term maintenance costs. A faulty control system causes unplanned downtime, uneven powder/paint deposition, recipe setting errors, and excessive material waste; a high-reliability system ensures 24/7 continuous operation, minimal rework, and seamless synchronization of all core equipment (pretreatment systems, spray booths, reciprocators, curing ovens) for architectural aluminum extrusions, industrial metal components, and automotive parts.
As a 15-year ISO9001/CE-certified manufacturer, pioneer of China’s explosion-proof powder room system, national high-tech enterprise with 40+ patents, and exporter to 100+ countries, Guangdong Guanghe Coating Equipment Co., Ltd. (Guanghe) engineers custom, high-reliability control systems for all types of spray painting lines—trusted by top brands including 广亚铝材，华建铝业，BYD, and GREE. Our control systems are optimized for the harsh industrial coating environment (dust, high temperature, chemical corrosion) and fully integrated with our in-house core equipment for zero compatibility issues. Below, we break down the mainstream control systems for spray painting lines, compare their reliability performance, outline key evaluation criteria, and share Guanghe’s industry-leading control system solutions—tailored for real-world production demands.
Main Control Systems for Spray Painting Lines: Reliability Comparison
Three control systems dominate the automatic spray painting line market, with stark differences in reliability, industrial adaptability, cost, and scalability. For manufacturers prioritizing long-term production stability and coating quality, reliability far outweighs upfront cost savings—a cheap, low-reliability system leads to far higher indirect costs from downtime and rework. All Guanghe’s control systems use global top-tier industrial components, with explosion-proof optimizations for powder coating lines (our core specialty).
1. Single-Chip Microcomputer Control System: Low Cost, Low Reliability
- Core Design: Basic microchip-based control with simple digital display and button operation—no independent industrial control hardware, the most economical option for spray painting lines.
- Reliability Performance: Poor environmental adaptability and anti-interference capability; prone to program crashes, parameter loss, and sensor malfunctions in dusty/high-temperature coating environments. No fault self-diagnosis function, leading to long troubleshooting times (hours to days) and frequent unplanned downtime. Limited operation logic, unable to sync with multiple high-speed equipment simultaneously.
- Applicable Scenarios: Small-batch, low-frequency production (≤100 parts/day) with no high precision or stability requirements—not recommended for professional industrial spray painting lines.
- Key Limitation: High long-term indirect costs, making it an unviable choice for manufacturers targeting consistent production.
2. Basic PLC Control System: Industrial-Grade, High Reliability
- Core Design: Based on professional programmable logic controllers (top brands: Mitsubishi, Siemens) paired with touchscreen operation panels and high-precision sensors—the industry standard for reliable spray painting lines.
- Reliability Performance: Industrial-grade hardware with IP65 dust-proof/sealing, high-temperature resistance (60℃ continuous use), and strong electromagnetic anti-interference—ideal for the harsh powder/paint coating environment. No program crashes or parameter loss; supports continuous 24/7 operation and seamless synchronization with 3–4 core equipment (e.g., conveyor + reciprocator + curing oven). Features clear fault prompts for quick troubleshooting (minutes to hours).
- Key Advantages: Easy program modification, 30+ custom coating recipe storage, and moderate upfront cost—balancing reliability and cost-effectiveness.
- Applicable Scenarios: Medium-volume production (200–800 parts/day), standard architectural aluminum extrusion lines, and general industrial metal coating workshops with basic automation needs.
- Guanghe’s Application: Our entry-level spray painting lines adopt Mitsubishi PLCs as the core, the gold standard for industrial automation with global spare parts availability.
3. PLC-Servo Integrated Control System: The Ultra-Reliable Flagship Choice
- Core Design: Combines a professional PLC control system (Mitsubishi) with a high-precision servo drive system and Omron high-sensitivity encoders—the most advanced and reliable control solution for spray painting lines, and Guanghe’s flagship offering for all professional production demands.
- Reliability Performance: The gold standard for spray painting line control—integrates the PLC’s stable logic control with the servo system’s precise motion control, achieving ±1mm positioning accuracy for automatic powder coating reciprocators and real-time speed synchronization with high-speed conveyors (up to 2m/min). IP66 dust-proof/corrosion-resistant sealing, explosion-proof rated components, and 365-day continuous operation capability—even in high-dust powder coating workshops.
- Key Advantages: Unbeatable precision + stability + scalability; supports auto workpiece detection, remote monitoring, and seamless integration with fully automated turnkey spray painting lines (6+ core equipment). Stores 50+ custom coating recipes for one-click workpiece switching.
- Applicable Scenarios: High-volume, high-precision production (≥800 parts/day), 6–12m long architectural aluminum extrusion lines, explosion-proof coating workshops, and export-oriented manufacturing with strict quality/efficiency requirements—the best choice for 90% of Guanghe’s professional clients.
Key Criteria to Evaluate Control System Reliability for Spray Painting Lines
Beyond the system type, several critical factors determine whether a control system is truly reliable for the harsh industrial coating environment—these hidden details separate industrial-grade solutions from cheap, disposable ones. Guanghe evaluates and optimizes all these factors in our spray painting line control systems to ensure long-term, trouble-free operation:
- Environmental Adaptability: Must resist dust, chemical corrosion (from pretreatment chemicals/coating materials), and high temperatures—IP65 or higher sealing is non-negotiable for spray painting workshops. For powder coating lines, explosion-proof rated components are a legal and operational requirement.
- Anti-Interference Capability: Industrial-grade electromagnetic shielding to avoid signal interference from other coating line equipment (e.g., high-temperature curing ovens, electrostatic spray guns) and factory power supply.
- Fault Tolerance & Self-Diagnosis: Clear real-time fault prompts and self-diagnosis functions to reduce troubleshooting time from hours to minutes—critical for minimizing unplanned downtime.

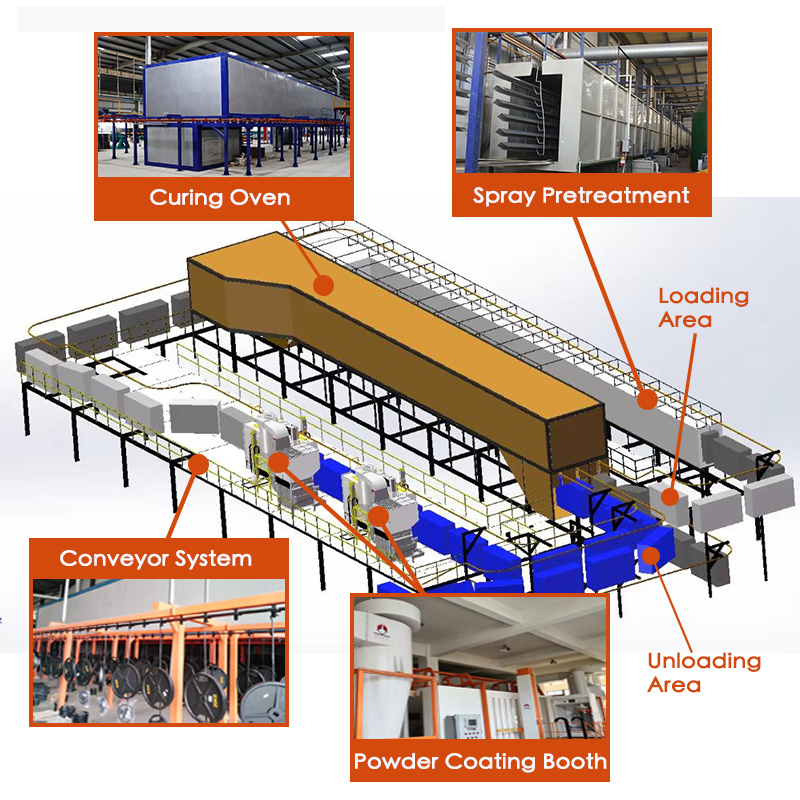

- Integration Compatibility: Seamless synchronization with all core equipment (pretreatment systems, powder coating booths, reciprocators, curing ovens) with no communication errors or production bottlenecks.
- Data Stability: No recipe or production parameter loss during power outages—ensures consistent coating quality across shifts and production runs.
- Scalability & Upgradeability: Modular design that supports function upgrades (e.g., adding remote monitoring, production data statistics) and equipment expansion (e.g., extra spray guns, a second curing oven) as production capacity grows.
Guanghe’s High-Reliability Control System Solutions for Spray Painting Lines
Guanghe’s core advantage is engineering customized control systems that align with your spray painting line’s production scale, workpiece specs, and safety requirements—we do not offer one-size-fits-all solutions, and all our control systems are fully integrated with our mechanical spray painting line design for optimal performance. Our flagship PLC-Servo Integrated Control System (the most reliable choice for professional production) features these industry-leading optimizations, exclusive to Guanghe:
1. Explosion-Proof Optimized Design (Our Core Specialty)
As the pioneer of China’s explosion-proof powder room system, we integrate explosion-proof rated motors, sealed electrical enclosures, and anti-static wiring into all our powder coating line control systems—meeting EU EMC Directive (EN55032:2018), CE, and ATEX standards. Eliminates ignition risks in high-dust spraying zones, with no compromise to precision or stability.
2. Global Top-Tier Industrial Components
All control systems use Mitsubishi PLCs, Mitsubishi servo drives, and Omron encoders—global top-tier industrial components with consistent quality, easy operation, and global spare parts access. Avoids the risk of hard-to-source custom components and reduces maintenance costs.
3. Smart Production & Remote Monitoring
Optional cloud-based remote monitoring for 24/7 production lines—adjust coating parameters, check line operation status, and receive real-time fault alerts from mobile/desktop devices, minimizing on-site manpower needs. 50+ custom coating recipe storage cuts setup time by 50% vs. manual control.
4. Seamless Line Integration
Pre-programmed PLC control to sync with all Guanghe in-house core equipment (conveyors, reciprocators, spray booths, curing ovens) for one-click operation—no on-site calibration needed, and zero compatibility issues between control and mechanical parts.
5. Rigorous Pre-Delivery Testing
All control systems are rigorously tested for 1000+ hours of continuous operation before delivery, paired with our spray painting line equipment to ensure perfect synergy and trouble-free on-site startup.
Real-World Reliability: Guanghe Client Success Case
A Shandong-based architectural aluminum manufacturer (3000t/month of 6–12m curtain wall mullions) previously used a single-chip microcomputer control system on their powder coating line—facing 2–3 unplanned downtime incidents per week (1–2 hours each), 15% rework rates from uneven powder deposition, and frequent recipe setting errors. After upgrading to Guanghe’s PLC-Servo Integrated Control System, the client achieved:
- 99.9% operational stability: Zero unplanned downtime in 12 months of continuous 24/7 production.
- ±1mm positioning accuracy: Re-work rates for uneven coating dropped to 0.5%, and powder waste was reduced by 10%.
- 50% faster setup: One-click recipe switching eliminated manual parameter adjustment for different aluminum extrusions.
- Seamless line synchronization: Perfect sync with the line’s conveyor, reciprocator, and curing oven, eliminating production bottlenecks and boosting overall efficiency by 30%.
This case proves that a high-reliability control system is not just a “component upgrade”—it is a production efficiency driver that slashes indirect costs and boosts overall ROI for spray painting lines.
Conclusion: PLC-Servo Integration Is the Most Reliable Choice for Professional Production
For professional spray painting/powder coating manufacturers—especially those producing architectural aluminum extrusions, industrial metal parts, or automotive components—the PLC-Servo Integrated Control System is the most reliable and cost-effective choice in the long run. It balances unbeatable operational stability, pinpoint coating precision, and seamless scalability, while the basic PLC control system is a great cost-effective option for medium-volume production with basic automation needs. The single-chip microcomputer control system, despite its ultra-low upfront cost, is not recommended for any professional industrial production environment due to its poor reliability and high indirect costs.
Guanghe’s 15 years of surface treatment expertise, 40+ patents, and explosion-proof engineering make us the trusted partner for manufacturers worldwide. All our control systems are fully ISO9001/CE-certified, with explosion-proof options available for powder coating lines, and fully integrated with our custom spray painting lines for a one-stop turnkey solution. We tailor every control system to your production capacity, workpiece specs, and factory layout—ensuring maximum reliability, efficiency, and scalability.
Ready to upgrade your spray painting line with a high-reliability control system? Browse our full range of automatic spray painting lines and control systems on our official website, or contact our engineering team via phone (+86 18520992137) or email (ghexport@coatmach.com) for a free personalized consultation—we will match you with the most reliable control system solution to maximize your production stability and ROI.
