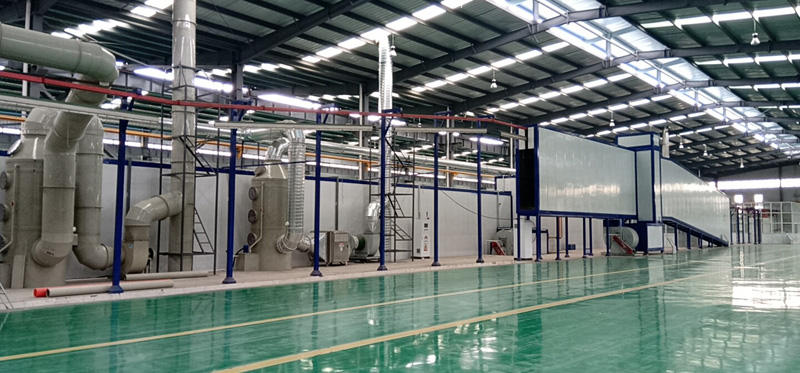

Designing an efficient automatic spray painting line is the cornerstone of consistent coating quality, high production capacity, and low operational costs for manufacturers of architectural aluminum extrusions, industrial metal components, and automotive parts. A streamlined line eliminates bottlenecks, cuts material/energy waste, and enables 24/7 continuous automation—while a haphazard design leads to costly downtime, uneven coatings, and missed production targets.
As a 15-year ISO9001/CE-certified manufacturer, pioneer of China’s explosion-proof powder room system, national high-tech enterprise with 40+ patents, and exporter to 100+ countries, Guangdong Guanghe Coating Equipment Co., Ltd. (Guanghe) specializes in custom turnkey automatic spray painting line design and manufacturing [https://www.powdercoatequipment.com/]. Trusted by 广亚铝材，华建铝业，BYD and GREE, our designs center on practical efficiency and seamless integration. Below are 6 core actionable steps to design an efficient automatic spray painting line, with industry-leading optimizations from Guanghe’s surface treatment expertise.
1. Align Design with Exact Production & Workpiece Requirements
The foundation of an efficient line is 1:1 matching with your production parameters—over-engineering or misaligning with workpiece specs wastes space and equipment capacity.
- Define key details: Workpiece material (aluminum/steel), dimensions (6–12m architectural extrusions vs. small industrial hardware), shape (linear/complex profiles), target output (e.g., 800–3000t/month), and coating standards (AAMA 2605, Qualicoat, ISO 12944).
- Account for factory constraints: Floor space, power/air supply, and safety/environmental rules (e.g., explosion-proof requirements for powder coating).
- Guanghe’s edge: Free on-site/remote production analysis to tailor every design to your factory and goals, avoiding one-size-fits-all flaws.
2. Optimize Linear Workflow & Balanced Process Speed
An efficient line relies on a continuous, bottleneck-free linear workflow with no unnecessary workpiece movement, and every stage’s speed must be calibrated to match.
- Adopt the optimal standard layout: Loading → Pretreatment System → Drying → Spraying Zone → Powder Coating Oven → Cooling → Unloading (flexible L-shape for limited space).
- Balance process speed: Match pretreatment immersion time, spraying speed, and curing time to avoid production backlogs (e.g., a fast spray zone paired with a slow oven wastes capacity).
- Guanghe’s edge: Custom-calibrated vertical/horizontal conveyor systems that sync all stages for smooth, continuous workpiece movement.
3. Select Integrated, High-Performance Core Equipment
Line efficiency depends on compatible, workpiece-optimized core equipment—mismatched individual machines negate even the best layout. All equipment must integrate seamlessly for synergy:
- Pretreatment system: Critical for coating adhesion—Guanghe’s spray/immersion systems remove oil/rust with automatic chemical dosing, reducing coating peeling by 99%.
- Explosion-proof Powder Coating Booth [https://www.powdercoatequipment.com/]: 95%+ powder recycling cuts material waste, IP66 dust-sealing, and explosion-proof design (our core specialty) for high-dust workshops.
- Automatic Powder Coating Reciprocator [https://www.powdercoatequipment.com/]: Servo-driven single/dual-axis models with ±1mm precision, supporting 2–8 electrostatic spray guns for high-volume spraying.
- Guanghe’s edge: All equipment is engineered in-house for perfect integration, no communication errors or performance lags between machines.
4. Integrate a Smart Centralized PLC Control System
Automation is the key to 24/7 efficiency, and a centralized Mitsubishi PLC servo-integrated control system acts as the line’s "brain," eliminating human error and streamlining operations.
- Core features: One-click operation for all equipment, 50+ custom coating recipe storage (one-click workpiece switching, cutting setup time by 50%), and real-time speed/parameter synchronization.
- Optional smart functions: Cloud-based remote monitoring, real-time fault diagnosis, and production data tracking (output, waste rate) for efficiency optimization.
- Guanghe’s edge: IP65 dust-proof/anti-interference design, explosion-proof rated components for powder coating lines, and easy operation for factory teams.
5. Prioritize Explosion-Proof Safety & Green Environmental Design
For powder coating lines (the most common automatic spray painting application), explosion-proof design is a legal requirement—while green design cuts long-term costs and meets global export standards.
- Explosion-proof optimization: As China’s pioneer of explosion-proof powder room systems, Guanghe integrates explosion-proof motors, sealed electrical enclosures, and dust-proof wiring, complying with EU EMC (EN55032:2018), CE, and ATEX standards.
- Green efficiency: Pair the line with Guanghe’s waste gas & waste water treatment equipment for VOC/ wastewater treatment; our curing ovens feature waste heat recovery (25–30% energy savings) and high-density insulation.
- Material waste reduction: 95%+ powder recycling in our spray booths cuts powder waste to <5% for high-volume production.
6. Design for Easy Maintenance & Future Scalability
An efficient line is not just easy to operate—it is low-maintenance and scalable—neglecting these leads to prolonged downtime and costly overhauls as production grows.
- Modular equipment design: Guanghe’s all equipment features quick-release panels and easy access to components, cutting maintenance time by 40% vs. non-modular models.
- Standardized global components: Use top-tier, globally available parts (Mitsubishi, Omron, Motovario) with global spare part stock (3–5 day urgent delivery).
- Scalable layout: Engineer the line to add equipment (extra spray guns, faster conveyors, a second curing oven) as production capacity increases—no need to build a new line from scratch.
- Guanghe’s edge: 12-month standard warranty (2-year extendable for bulk orders) and 24/7 technical support (+86 18520992137 / ghexport@coatmach.com).
Conclusion
Designing an efficient automatic spray painting line boils down to six core principles: matching production needs, optimizing workflow, integrating high-performance equipment, adopting smart control, prioritizing safety/green design, and building for maintenance/scalability. There is no one-size-fits-all solution—customization is the key to maximizing ROI and production efficiency.
Guanghe’s 15 years of experience in surface treatment turnkey solutions, 40+ patents, and explosion-proof engineering expertise make us the trusted partner for manufacturers worldwide. Our custom automatic spray painting lines [https://www.powdercoatequipment.com/] are fully ISO9001/CE-certified, tailored to your workpiece, capacity, and factory needs, and deliver consistent efficiency for architectural aluminum, industrial metal, and automotive part production.
Ready to design your efficient automatic spray painting line? Contact our engineering team for a free personalized design consultation, or browse our full range of integrated spray painting equipment on our official website—we turn your production goals into a streamlined, high-efficiency reality.
