For manufacturers in architectural aluminum, automotive fabrication, and industrial metal surface treatment, a powder coating reciprocator is an indispensable piece of electrostatic powder coating equipment—its ability to automate and precision-control spray gun movement is the key to consistent coating quality, reduced material waste, and higher production efficiency, especially for 3–12m long aluminum profiles, curtain wall components, and large vertical metal workpieces.
As a 15-year professional powder coating equipment manufacturer with ISO9001:2015 and CE certification, Guanghe Coating is China’s pioneer of the explosion-proof powder room system, holds 40+ patent certificates, and exports to 100+ countries worldwide. In this guide, we break down the fundamental definition, core components, working principles, and key types of powder coating reciprocators—while also sharing our industry-tailored reciprocator solutions designed for stable operation in high-temp, dusty industrial environments. This guide answers all the critical questions you need to know about this essential equipment for vertical powder coating lines and industrial spraying setups.
1. What Is a Powder Coating Reciprocator?
A powder coating reciprocator (also called a powder coating vertical lift or spray gun reciprocator) is an automated mechanical device that drives electrostatic powder coating guns to move vertically (and in some cases horizontally) along a fixed guide rail at a controlled speed and stroke.
Its core purpose is to replace manual spray operation, ensuring the powder coating gun covers the entire surface of metal workpieces with uniform distance and spray angle—eliminating human error that causes uneven coating, over-spray, and rework. It is a core component of fully automated powder coating systems, pairing seamlessly with powder coating booths, powder coating ovens, pre-treatment systems, and conveyor lines to form a complete surface treatment turnkey solution.
Key Application Scenarios:
- 3–12m architectural aluminum profile powder coating
- Automotive body parts, agricultural machinery, and heavy industrial component spraying
- Vertical metal frame, curtain wall, and hardware product mass production
- Explosion-proof spraying environments with flammable powders or high dust levels
All Guanghe powder coating reciprocators are custom-designed for these scenarios, with adjustable stroke, speed, and multi-gun configurations to match the unique workpiece specs of global manufacturers—including our partners BYD, GREE, Honda, and Hisense.
2. Core Components of a Powder Coating Reciprocator
A high-quality powder coating reciprocator’s performance and durability depend on its core components, all of which are engineered for industrial-grade use at Guanghe. Each component works in synergy to ensure smooth, precise, and long-lasting operation:

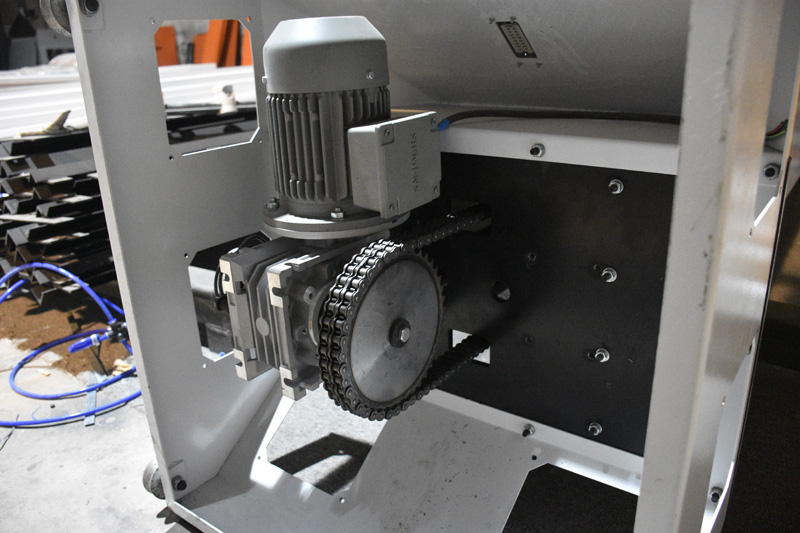

- Drive System: The "power core"—includes AC motor, servo motor (for high-precision models), or hydraulic system. Guanghe uses high-torque, low-noise motors with frequency conversion speed regulation for 0.01m/s–6m/s stepless adjustment.
- Guide Rail & Carriage Assembly: The movement track—Guanghe adopts heavy-duty steel guide rails with polyurethane rollers to reduce abrasion and ensure stable carriage movement, even for 24/7 continuous production.
- Spray Gun Bracket: Holds 1–12 electrostatic powder coating guns (customizable). The bracket features 360° adjustable gun angle and distance, matching the contour of workpieces like aluminum profiles and automotive parts.
- Control System: The "brain"—includes a digital touch panel, PLC controller, and program memory (up to 80 programs for servo-driven models). Operators can pre-set stroke length, speed, and spray mode for one-click operation, cutting setup time significantly.
- Frame Structure: Laser-cut and welded heavy-duty steel frame (Guanghe’s core production process) with anti-rust powder coating, ensuring structural rigidity and no misalignment even in harsh industrial environments.
- Safety Components: For explosion-proof models—sealed electrical components, explosion-proof solenoid valves, and flame-retardant materials, complying with EU EMC and ATEX safety standards.
3. How Does a Powder Coating Reciprocator Work?
The working principle of a powder coating reciprocator is straightforward and highly automated, with a seamless integration with the entire electrostatic powder coating process. Below is the step-by-step operational flow for a standard reciprocator in a vertical powder coating line—this is the industry-proven process used in Guanghe’s turnkey solutions:
- Pre-Set Parameters: Operators input workpiece dimensions (height/length), coating requirements, and spray speed into the reciprocator’s control panel; the system calibrates stroke limits and gun movement speed automatically.
- Workpiece Positioning: The workpiece is conveyed to the spraying zone (inside a powder coating booth) via an automated conveyor system, with precise positioning to align with the reciprocator’s spray gun bracket.
- Initiate Reciprocation: The reciprocator’s drive system activates, moving the spray gun carriage up and down along the guide rail at the pre-set speed; the electrostatic powder coating guns start spraying simultaneously, with charged powder particles adhering to the grounded workpiece surface (electrostatic adsorption principle).
- Uniform Coverage: The reciprocator maintains a fixed distance between the spray guns and the workpiece (15–30cm, adjustable) throughout the movement, ensuring even powder deposition and consistent film thickness (50–150μm) across the entire workpiece surface—no missed areas or thick spots.
- Programmed Stop: When the reciprocator completes the pre-set number of spray passes, it stops at the designated position; the conveyor system moves the coated workpiece to the powder coating oven for curing, and the next workpiece enters the spraying zone for continuous production.
- Powder Recovery: Unadsorbed powder is collected by the powder coating booth’s recovery system for reusability—reducing material waste by 30%+ when paired with a Guanghe reciprocator’s optimized spray parameters.
For servo-driven and custom models, the reciprocator can also sync with conveyor speed for continuous moving spraying—a key feature for high-volume production of 3–12m aluminum profiles, eliminating downtime between workpiece changes.
4. Common Types of Powder Coating Reciprocators (Guanghe’s Custom Solutions)
Powder coating reciprocators are classified by their drive system and safety features, each optimized for specific production scenarios. Guanghe offers four core types, all with OEM/ODM customization to match your workpiece specs and production scale—our solutions are the gold standard for global powder coating manufacturers:
a. Automatic Powder Coating Reciprocator
- Core Features: AC motor drive, digital speed/stroke control, 4–12 gun capacity, pre-settable operation modes
- Ideal For: High-volume mass production of standard vertical workpieces (aluminum window/door profiles, industrial metal frames)
- Guanghe Advantage: Polyurethane guide rollers for zero-abrasion movement, seamless integration with our electrostatic powder coating machines, cutting labor costs by 60% vs manual spraying.
b. Servo-Driven Powder Coating Reciprocator
- Core Features: Servo motor drive, millimeter-level precision control, 80 production program memory, stepless speed regulation
- Ideal For: 3–12m architectural aluminum profiles, curtain wall components, and high-precision automotive parts (coating uniformity is non-negotiable)
- Guanghe Advantage: Calibrated exclusively for the architectural aluminum industry, pairing perfectly with our vertical powder coating lines with no coating gaps at profile joints or complex contours.
c. Explosion-Proof Powder Coating Reciprocator
- Core Features: Explosion-proof electrical components, sealed drive system, EU EMC/ATEX compliance, flame-retardant frame
- Ideal For: High-risk spraying environments (flammable powder coatings, high-dust industrial workshops, automotive body part fabrication)
- Guanghe Advantage: As China’s pioneer of the explosion-proof powder room system, our explosion-proof powder coating reciprocators are CE/ISO certified, part of our complete explosion-proof spraying turnkey solution (including booths and ovens).
d. Custom-Stroke Vertical Reciprocator
- Core Features: 1.5m–6m adjustable stroke, 110V/220V/380V voltage customization, hydraulic lifting for heavy workpieces (up to several tons)
- Ideal For: Small-batch custom production, non-standard heavy-duty metal components, retrofitting existing powder coating lines
- Guanghe Advantage: Laser-cut steel frame, fully customizable gun bracket positioning, seamless integration with your existing pre-treatment and curing systems—no costly line reworks required.
5. Why Choose Guanghe’s Powder Coating Reciprocators?
With 15+ years of experience in powder coating equipment R&D and manufacturing, Guanghe Coating stands out from generic manufacturers with industry-tailored design, certified quality, and one-stop service—our reciprocators are engineered for long-term reliability and production efficiency in real industrial environments:
- Certified Quality & Safety: ISO9001:2015 quality management system, CE certification, 40+ national patents, and national high-tech enterprise status—our products meet global manufacturing regulations.
- Industry-Specific Engineering: All reciprocators are designed for powder coating, with a focus on 3–12m architectural aluminum profiles and automotive spraying—no generic mechanical design.
- Durable Core Components: Laser cutting, bending, and welding burnish production processes; polyurethane guide rollers, sealed motors, and anti-rust frames—stable operation in high-temp/dusty conditions for 10+ years.
- Global Customization: Exported to 100+ countries, with voltage, plug, and control panel language customization; OEM/ODM design for unique workpiece specs and production lines.
- One-Stop Turnkey Solution: Our reciprocators are fully compatible with all Guanghe powder coating equipment (booths, ovens, pre-treatment systems, robots) for a seamless, fully automated production line—we handle design, manufacturing, installation, and training.
- 24/7 Global Technical Support: A dedicated export team and global technical support network; free online maintenance training and a detailed operation manual for all clients.
6. FAQs About Powder Coating Reciprocators
Q1: Can a powder coating reciprocator be used for both small and large workpieces?
Yes. Guanghe’s reciprocators feature adjustable stroke length (1.5m–6m) and gun bracket positioning, making them suitable for small hardware parts and large 12m aluminum profiles—simply adjust the parameters on the control panel for different workpieces.
Q2: How many spray guns can a Guanghe reciprocator hold?
Our reciprocators support 1–12 electrostatic powder coating guns (customizable). For long aluminum profiles, we recommend 8–12 guns to cover the entire workpiece in a single pass, boosting production efficiency by 40%+.
Q3: Can Guanghe’s reciprocators integrate with my existing powder coating line?
Absolutely. Our engineering team will conduct a free on-site/online assessment of your existing line (conveyors, booths, ovens) and customize the reciprocator’s stroke, speed, and mounting design for seamless integration—no full line replacement needed.
Q4: What maintenance is required for a powder coating reciprocator?
Guanghe’s reciprocators are designed for low maintenance. Simply clean the guide rails and lubricate moving parts weekly, calibrate the gun alignment monthly (for high-volume production), and inspect electrical components quarterly—this prevents misalignment and ensures long-term stable operation.
Q5: Are Guanghe’s reciprocators suitable for explosion-proof environments?
Yes. Our explosion-proof powder coating reciprocators are CE/ATEX certified, with sealed electrical components and flame-retardant materials—they are the ideal solution for high-risk spraying environments with flammable powders or high dust levels.
Get Your Custom Powder Coating Reciprocator Solution Today
A powder coating reciprocator is the foundation of an efficient, high-quality powder coating system—choosing the right one for your production scenario is critical to reducing costs and improving product quality. Whether you need a standard automatic reciprocator for mass production, a servo-driven model for 3–12m aluminum profiles, an explosion-proof solution for high-risk environments, or a fully custom reciprocator for non-standard workpieces, Guanghe Coating has the expertise and products to deliver.
