In automated powder coating—for architectural aluminum extrusions, industrial metal parts, or automotive components—the powder coating reciprocator is critical for consistent finishes, uniform powder deposition, and production efficiency. A high-performing unit slashes rework and material waste; a subpar one causes uneven coatings, sagging, and costly downtime. As a 15-year industry leader, pioneer of China’s explosion-proof powder room system, and ISO9001/CE-certified manufacturer exporting to 100+ countries, Guangdong Guanghe Coating Equipment Co., Ltd. (Guanghe) engineers Powder Coating Reciprocators optimized for real-world production. Trusted by 广亚铝材，华建铝业，and BYD, our reciprocators address the core factors shaping performance—below, we break down the key considerations.
1. Drive System & Motion Precision: The Core of Uniform Coating
The drive system dictates a reciprocator’s ability to move spray guns smoothly and accurately, critical for consistent powder deposition (60–120μm, the standard for architectural aluminum).
Unlike generic models with low-cost hydraulic/AC drives (prone to speed lag and jitter), Guanghe’s use Mitsubishi servo motors and Italian Motovario reducers, delivering 0.5–5m/min stepless speed and ±1mm positioning accuracy. Paired with European linear guide rails, this eliminates vibration and maintains a constant 20–30cm gun-to-workpiece distance—essential for 6–12m aluminum extrusions. Our reciprocators also sync with Mitsubishi PLCs to match conveyor speed, avoiding missed coverage on continuous lines like our Vertical Powder Coating Line.
2. Structural Design & Durability: Built for Harsh Coating Environments
Powder coating facilities are dusty and corrosive (due to cleaning chemicals), so construction materials and build quality directly affect longevity and stability.

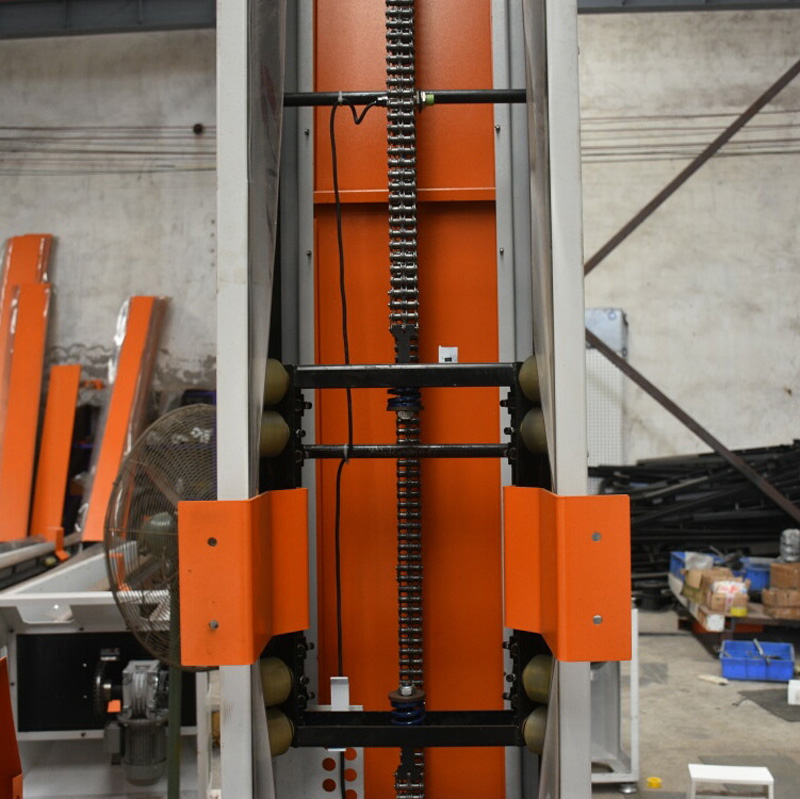

Guanghe’s reciprocators feature a 304 stainless steel frame that resists corrosion and warping, reinforced to support 2–8 spray guns (up to 50kg) without sagging. All electrical/moving parts have IP65 dust-proof sealing, and we use high-pressure imported polyurethane rollers (5+ year lifespan) instead of cheap, quick-cracking plastic. This explosion-proof compatible design (a Guanghe specialty) prevents powder buildup and jams, ideal for high-dust coating booths.
3. Intelligent Control Systems: Minimize Error, Boost Efficiency
Basic manual controls cause human error and slow setup; smart PLC controls are critical for multi-product, high-volume operations.
Our reciprocators have Mitsubishi PLCs and Omron encoders, storing 50+ custom spraying recipes (speed, stroke, gun position) for one-click workpiece switching (e.g., window frames vs. curtain wall mullions), cutting setup time by 50%. Auto workpiece detection adjusts stroke length automatically, reducing powder waste by 8–10%, while touchscreen controls and optional remote monitoring let you tweak parameters for 24/7 production. The system integrates seamlessly with our Powder Coating Gun (100kv output) and explosion-proof Powder Coating Booth for full automation.
4. Stroke Length & Adjustability: Match to Your Workpieces
Mismatched stroke length is a common error: fixed generic lengths miss large/variable-height workpieces, leaving uncoated edges.
Guanghe offers 1500–3000mm adjustable stroke lengths (ideal for architectural aluminum extrusions), with custom options up to 4000mm for ultra-tall industrial parts. We recommend a 10–15% stroke buffer for conveyor movement, and our dual-axis models add 0–1000mm horizontal adjustability for large flat workpieces (e.g., aluminum cladding panels). Offset stroke capabilities also accommodate irregular components, ensuring full coverage.
5. Spray Gun Compatibility & Mounting Flexibility
A reciprocator’s performance depends on spray gun mounting/alignment; poor mounting causes misalignment and uneven deposition.
Our reciprocators have 360° adjustable universal mounting brackets (fits all major electrostatic spray guns), with 50–200mm variable gun spacing for complex profiles (e.g., aluminum corners). They support 2–8 guns simultaneously, with staggered/symmetric positioning to double/triple efficiency for high-output vertical lines (800–3000t/month). Integrated wear-resistant nylon hose guides prevent kinking and inconsistent powder flow, minimizing waste.
6. Environmental Adaptability & Safety Compliance
Dusty environments and strict global safety standards require reciprocators with explosion-proof and high-temperature capabilities.
As China’s pioneer of explosion-proof powder room systems, our reciprocators use explosion-proof rated motors and sealed enclosures, meeting EU EMC Directive (EN55032:2018) and CE certification—eliminating ignition risks in dusty booths. All components handle 60℃ continuous use (suitable near curing ovens), and the 304 stainless steel frame resists alkaline cleaning chemicals for long-term integrity.
7. Maintenance & After-Sales Support: Avoid Hidden Downtime
Even top-tier reciprocators underperform without easy maintenance and reliable support, key hidden factors for long-term performance.
Guanghe’s reciprocators have a modular design with quick-release panels, cutting maintenance time by 40% via easy access to guide rails, bearings, and motors. We use global standard components (Mitsubishi, Motovario) and stock critical spare parts worldwide, with 3–5 day urgent delivery. Our support includes a 12-month standard warranty (2-year extendable for bulk orders), 24/7 technical help (+86 18520992137 / ghexport@coatmach.com), and on-site installation/training.
Real-World Results: Guanghe Client Success
A Vietnamese architectural aluminum manufacturer (1500t/month of 6–12m extrusions) upgraded to Guanghe’s servo-driven reciprocator, resolving 20% rework from uneven coating and frame warping. Post-upgrade, they achieved 99% first-pass yield, 10% lower powder waste, 25% faster setup, and zero unplanned downtime in 12 months—proving these factors drive tangible savings.
Conclusion: Performance = Alignment with Your Production Needs
A powder coating reciprocator’s performance depends not on a single feature, but on alignment with your workpiece size, production volume, and environmental conditions. Guanghe’s ISO9001/CE-certified reciprocators are engineered for your application—architectural aluminum, industrial components, or explosion-proof automotive production—drawing on 40+ patents and 500+ global client insights.
Ready to upgrade your coating line? Browse our Powder Coating Reciprocators on our official website, or contact our engineering team for a free personalized consultation to match your production needs and maximize ROI.
