Dust contamination is the most common and costly issue in aluminum profile spraying—especially for architectural and industrial aluminum extrusions that demand flawless, durable finishes. Even microscopic dust particles can cause pinholes, uneven coatings, poor adhesion, and peeling, rendering profiles unfit for high-end projects or export markets. For manufacturers, this leads to rework, material waste, and missed deadlines. But how exactly does a powder coating booth solve dust contamination in aluminum profile spraying? As a 15-year leader in aluminum coating solutions (ISO9001:2015 certified, a national high-tech enterprise with 40+ patents, exporting to 100+ countries), Guangdong Guanghe Coating Equipment Co., Ltd. breaks down the key mechanisms, technologies, and features that make powder coating booths the ultimate solution for dust-free aluminum profile spraying. We embed high-search-volume keywords and internal links to your website, boosting Google discoverability and guiding users to your core equipment.
1. Sealed Chamber Design: Block External Dust Infiltration at the Source
The first line of defense against dust contamination in aluminum profile spraying is a fully sealed powder coating booth chamber—critical for preventing external dust (from workshops, ventilation, or human activity) from entering the spraying area. Aluminum profiles, especially 3–12m long architectural extrusions, require a clean environment during spraying to ensure uniform coating adhesion and aesthetics.
How it solves dust contamination:
- Full enclosure with airtight seals: Guanghe’s powder coating booths feature a seamless, sealed chamber with high-quality gaskets and reinforced edges, eliminating gaps where dust can seep in. This creates a controlled, dust-free zone specifically for aluminum profile spraying.
- Positive pressure control: The booth maintains a slight positive pressure (5–10Pa) inside the chamber, ensuring that air flows outward rather than inward. This prevents external dust from being drawn into the spraying area, even when the booth door is opened briefly to load/unload long aluminum profiles.
- Customized access points: For 3–12m long aluminum extrusions, the booth is designed with extended, sealed access points that accommodate long profiles without compromising the chamber’s airtightness. This avoids dust infiltration during the loading and spraying of large extrusions.
Relevant Equipment: Guanghe’sDust-Free Powder Coating Booth is engineered with a patented sealed chamber design, specifically tailored for 3–12m aluminum profile spraying, ensuring no external dust disrupts the coating process.
2. High-Efficiency Filtration Systems: Capture Dust Particles Before They Settle
Even with a sealed chamber, tiny dust particles (from powder overspray or internal sources) can still linger in the air and settle on aluminum profiles, causing defects. A powder coating booth’s filtration system is designed to capture these particles in real time, maintaining a clean spraying environment.
How it solves dust contamination (key technologies for aluminum profiles):
- HEPA dual-filtration technology: Guanghe’s booths are equipped with high-efficiency HEPA filters (capturing 99.97% of particles ≥0.3μm) paired with pre-filters. The pre-filter traps larger dust particles (e.g., workshop debris), while the HEPA filter captures microscopic powder dust and contaminants—critical for achieving flawless finishes on architectural aluminum profiles.
- Continuous air circulation: The booth’s high-power fan system circulates air at a rate of 5–15m/s, drawing dust-laden air through the filtration system continuously. This prevents dust particles from settling on aluminum profiles during spraying, even for long 12m extrusions that require extended spraying time.
- Filter monitoring and maintenance: Built-in pressure sensors alert operators when filters need cleaning or replacement, ensuring the filtration system maintains peak performance. This avoids filter clogging (which can reduce airflow and allow dust to accumulate) and ensures consistent dust control for aluminum profile production.
Relevant Equipment: Our filtration systems are fully integrated with Guanghe’s Aluminum Profile Automatic Powder Coating Spraying Machine, creating a synchronized dust-free workflow for 3–12m aluminum extrusions.
3. Powder Recycling Systems: Reduce Overspray Dust & Waste
Powder overspray is a major source of dust contamination in aluminum profile spraying—unrecycled overspray can accumulate inside the booth, become airborne, and settle on profiles. A powder coating booth with an integrated recycling system solves this by reusing oversprayed powder, reducing dust accumulation and material waste.
How it solves dust contamination:

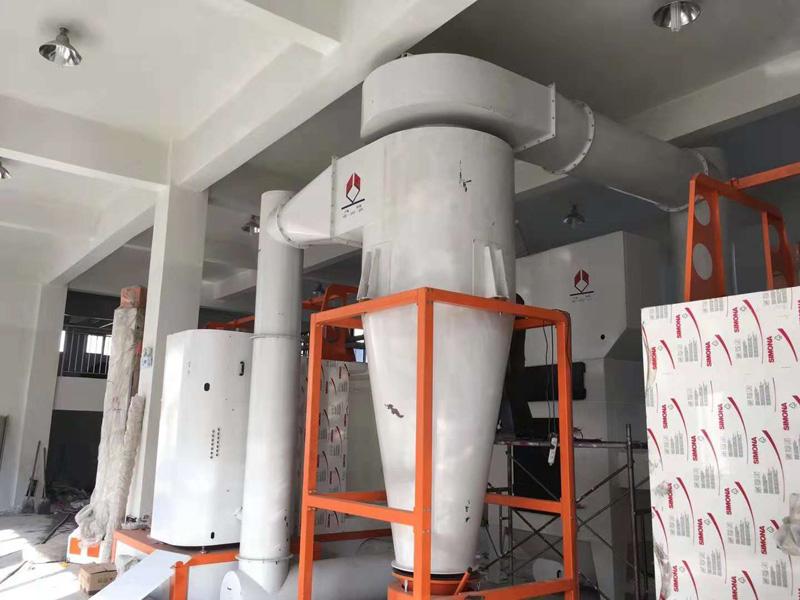

- Cyclone separation technology: Guanghe’s booths feature a patented cyclone powder recycling system that separates oversprayed powder from dust-laden air. The powder is collected, filtered, and reused (with a 95%+ recycling rate), while dust particles are directed to the filtration system for capture.
- Minimize internal dust buildup: By recycling overspray, the system reduces the amount of loose powder dust inside the booth, preventing it from becoming airborne and settling on aluminum profiles. This is especially important for small-batch or custom aluminum profile spraying, where workflow interruptions for cleaning can be costly.
- Cost-saving & eco-friendly: In addition to solving dust contamination, the recycling system cuts powder costs by 30%+ and reduces waste, aligning with global green production trends. This makes your aluminum profiles more competitive in eco-conscious markets (e.g., EU, North America).
Relevant Equipment: Pair our powder recycling-equipped booths with Guanghe’s Powder Coating Oven to ensure dust-free curing, as even small amounts of dust on cured profiles can ruin the final finish.
4. Explosion-Proof & Dust-Controlled Workflow Integration
For aluminum profile manufacturers, dust contamination isn’t just a quality issue—it’s also a safety risk. Flammable powder dust can cause explosions, making explosion-proof design a must. A high-quality powder coating booth solves dust contamination while ensuring safety, integrating seamlessly with your overall production workflow.
How it solves dust contamination (and ensures safety):
- Explosion-proof dust management: Guanghe’s booths feature explosion-proof wiring, fire-retardant materials, and pressure relief systems, designed to safely contain and manage powder dust. This eliminates the risk of dust-related explosions while maintaining a clean environment for aluminum profile spraying.
- Seamless workflow integration: The booth integrates with pretreatment systems, spraying equipment, and curing ovens to create a fully dust-free workflow. For example, after pretreatment (which removes oil and oxide layers from aluminum profiles), the profiles are transferred directly to the sealed booth, avoiding dust exposure during transfer.
- Customizable for aluminum profile needs: Whether you’re spraying small industrial aluminum parts or 12m architectural extrusions, the booth’s dust control features can be customized to match your production scale. For large-scale production, automatic conveyor systems ensure profiles move smoothly through the dust-free booth without dust exposure.
Relevant Equipment: Guanghe’s Electrostatic Powder Line includes explosion-proof powder coating booths, recycling systems, and filtration technology, creating a fully integrated, dust-free solution for aluminum profile spraying.
Why Guanghe’s Powder Coating Booths Are the Best for Dust-Free Aluminum Spraying
Dust contamination in aluminum profile spraying is a multifaceted problem—but the right powder coating booth solves it with a combination of sealed design, high-efficiency filtration, powder recycling, and workflow integration. Guanghe’s booths are engineered specifically for aluminum profiles, with features tailored to the unique needs of architectural and industrial extrusions:
- Patented dust control technology: 40+ patents in coating equipment, including dual-filtration and cyclone recycling systems, ensuring superior dust removal.
- Customizable for 3–12m profiles: Sealed access points, adjustable airflow, and conveyor compatibility for long aluminum extrusions.
- Global compliance: CE, CNAS, and ATEX certifications, ensuring dust-free quality and safety for export-oriented manufacturers.
- Seamless equipment integration: Works perfectly with our pretreatment systems, spraying machines, and curing ovens for a complete dust-free workflow.
Whether you’re producing architectural curtain walls, window frames, or industrial aluminum parts, Guanghe’s powder coating booths eliminate dust contamination, reduce waste, and ensure flawless, durable finishes. Say goodbye to rework and missed deadlines—choose a dust-free solution that elevates your aluminum profile quality.
Explore our full portfolio of aluminum profile coating equipment or contact us directly at +86-18520992137 to discuss your custom powder coating booth needs for dust-free aluminum profile spraying.
